Zimmermann Coat Z Sport Brake Disc for BMW 1 (F20) front
Partnumber: 150.3497.52
The Zimmermann Sport Brake Disc was developed as a result of experience of brake discs in series-production vehicles in connection with racing.
The brake system is optimised by combining high-quality cast materials with a perforated braking surface.
Your advantages: - Better wet braking performance by permanent expulsion of brake dust and water
- Sporty look
- Because of the anti-corrosion protection Coat Z better finish - especially of the hub and the outer diameter
- Noticeable improvement in the braking power of your car
- Prevention of brake fade
- Countersinking of holes doubles up as wear indicator
- 1:1 exchange of original disc possible
- no additional adaptions necessary
Coat Z - - No formation of rust at the hub and herewith improved visual appearance
- Immediate functional capability without removal of the coating before mounting
- German production meeting the requirements of actual Quality Management Systems
- Well-known, highest Zimmermann-Product-Quality
suitable for:
BMW 1 (F20)
Typ: 120 d xDrive
build year: 01.03.2010 -
KW / HP: 140/190
ccm: 1995
fuel type: Diesel
body: Schrägheck
Position: front

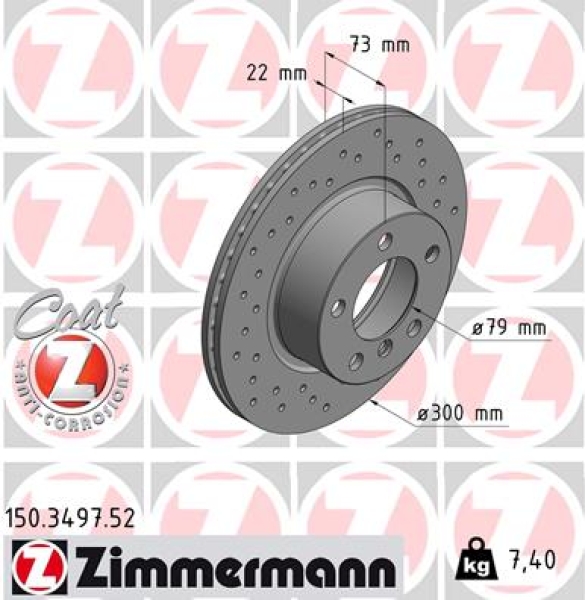

Brake Disc Specification:
brake discs art: Innenbelüftet, Gelocht
thickness (mm): 22
height: 73
outer diameter (mm): 300
hole pitch / number: 6/5
bolt hole circle 1 Ø (mm): 120
min. thickness (mm): 20,4
hub bore Ø (mm): 79,0
Certification: eintragungsfrei
OE-Number (for comparison only): 3411 6 792 217, 24.0122-0278.2, 0 986 479 A18, 92238503, 92238505, 562976JC, MDC2351, BDC6077, 39111, DF6143S, 09.C114.11, DDF2195C, 150.3497.00, 150.3497.20, 150.3497.50, BS7343, BS7343B, 20 93 9111, 8120 111034C, BG4645C, 6110689, BV 9046, BBD5264, 23-1367C, 2015101, 3115101, BS-9200, 25766, 383 521 0014/PD, 61449.10, V20-80091, NBD1815, 18133, B2057V, DF1654, 142.1586, BD-4666, 8DD 355 129-401, 6061435, 25436 V, 61449 10, V499, BD1654, 18152015101, 18153115101, 19-2697, 800-1367C, 1110412, D61449.10, BDR2622.20, ADC1770V, 103240, B130673, C3B045ABE, PRD2863, 58152015101
Price per piece - Brake discs are to be changed in pairs.
