Zimmermann Brake Disc for FIAT MULTIPLA (186_) front
Partnumber: 230.2363.20
Our aim is to supply our customers with high quality products at all times.
As a manufacturer of safety parts we are aware of our responsibilities and give precedence to product quality. All the brake discs and brake drums in our standard range of wearing parts are manufactured in dimensions and to a material quality specified by the automotive manufacturers.
Your advantages: - Extensive product range with over 1,000 different customer references
- Equivalent spare parts as defined by motor vehicle block exemption regulation KFZ-GVO (EU) 330/2010
- Consistently high product quality
- Reliable delivery service guaranteed by keeping adequate levels of stock
- Wide range of Standard Brake Discs with anti-corrosion protection Coat Z
- Ongoing development and expansion of range
- Over 50 years experience in brake disc manufacture
suitable for:
FIAT MULTIPLA (186_)
Typ: 1.6
build year: 01.09.1999 - 01.06.2010
KW / HP: 76/103
ccm: 1596
fuel type: Benzin
body: Großraumlimousine
Position: front

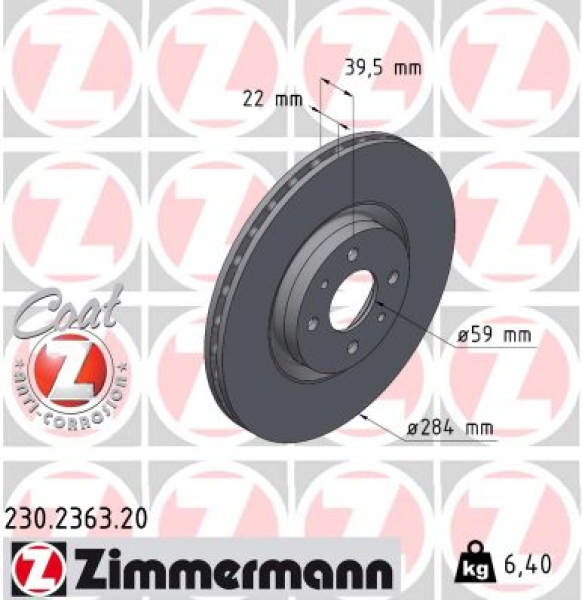

Brake Disc Specification:
brake discs art: Innenbelüftet
thickness (mm): 22
height: 39,5
outer diameter (mm): 284
hole pitch / number: 6/4
bolt hole circle 1 Ø (mm): 98
min. thickness (mm): 20,2
hub bore Ø (mm): 59
Certification: eintragungsfrei
OE-Number (for comparison only): 464 03 958, 464 27 947, 464 27 949, 608 11 890, 608 12 067, 608 12 037, 824 62 136, 24.0122-0107.1, 422107, 50914, 50914PRO, 186297, 0 986 478 786, 92055200, 92055203, 561508J, 561508B, 360406028800, 360406028803, MDC808, BDC3854, DF29298, 12133, DF1757, 09.5058.14, 09.5058.75, DDF252, 230.2363.00, 230.2363.50, 230.2363.52, BS3854, 70 91 2133, 8120 15110, BG2617, 231155, 24273 E, BS 7997, 23-0298, 202327, BS-3150, 15040, 215 521 0010, 6315.10, V24-80004, T0620314, HP57446, 16153, 16153S, L2081V, DF546, AC2226D, D2226, 142.412, HPD 412, BD-7947, 9004815J, 37-0426, 6017571, X 24273, 6315 10, V036, 1815202327, 19-7947, 800-298, D6315.10, 01.10.42.121067, BDA1231.20, BDR1231.20, BDRS1231.25, FBD476, 98094, C3F006ABE
Price per piece - Brake discs are to be changed in pairs.
Zimmermann BS FIAT/ALFA ROMEO Coat Z
