Zimmermann Brake Disc for RENAULT ESPACE IV (JK0/1_) front
Partnumber: 470.2426.20
Our aim is to supply our customers with high quality products at all times.
As a manufacturer of safety parts we are aware of our responsibilities and give precedence to product quality. All the brake discs and brake drums in our standard range of wearing parts are manufactured in dimensions and to a material quality specified by the automotive manufacturers.
Your advantages: - Extensive product range with over 1,000 different customer references
- Equivalent spare parts as defined by motor vehicle block exemption regulation KFZ-GVO (EU) 330/2010
- Consistently high product quality
- Reliable delivery service guaranteed by keeping adequate levels of stock
- Wide range of Standard Brake Discs with anti-corrosion protection Coat Z
- Ongoing development and expansion of range
- Over 50 years experience in brake disc manufacture
suitable for:
RENAULT ESPACE IV (JK0/1_)
Typ: 2.0 Turbo (JK0A, JK0B, JK0N)
build year: 01.11.2002 -
KW / HP: 120/163
ccm: 1998
fuel type: Benzin
body: Großraumlimousine
Position: front

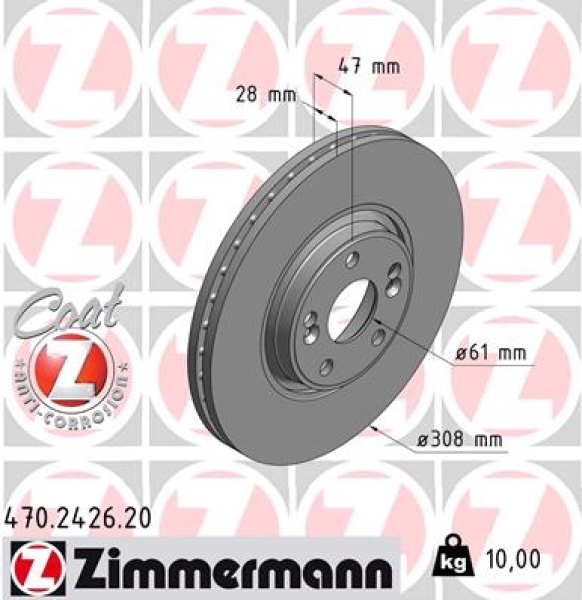

Brake Disc Specification:
brake discs art: außenbelüftet
thickness (mm): 28
height: 47
outer diameter (mm): 308
hole pitch / number: 7/5
bolt hole circle 1 Ø (mm): 108
bolt hole circle 2 Ø (mm): 105
min. thickness (mm): 25,4
hub bore Ø (mm): 61
Certification: eintragungsfrei
OE-Number (for comparison only): 7701 207 378, 8200 570 677, 8200 242 317, 8DD 355 115-161, 24.0128-0135.1, 186722, 0 986 479 199, 92174003, 562593JC, 562593BC, MDC1887, BDC5279, DF29517, 24310, DF4260S, 09.9821.20, 09.9821.21, DDF1368, 470.2426.50, BS5279, 60 92 4310, 8120 25144, 14.0841, 14.0841N, BG9016, 230985, 22974, BS 8593, BV 8593, BBD5929S, 23-0673C, 203948, 313948, BS-7960, 15135, 16-15 521 0025, 6694.10, 78BD2317 C, 58157, 17158, 17158 OE, R1013V, DF976, AC3216D, 142.044, BD-2317, 6104007, 6042605, 24974, 24974 V, 6694 10, V782, 1815203948, 1815313948, 19-2317, 800-673C, D6694.10, BDA1999.20, BDR1999.20, ADC1576V, 304231, 305442, 1031018, B130379, C3R033ABE, BD1320, PRD2684
Price per piece - Brake discs are to be changed in pairs.
Zimmermann BS RENAULT Coat Z
