Zimmermann Brake Disc for SUZUKI WAGON R+ Schrägheck (MM) front
Partnumber: 430.1487.20
Our aim is to supply our customers with high quality products at all times.
As a manufacturer of safety parts we are aware of our responsibilities and give precedence to product quality. All the brake discs and brake drums in our standard range of wearing parts are manufactured in dimensions and to a material quality specified by the automotive manufacturers.
Your advantages: - Extensive product range with over 1,000 different customer references
- Equivalent spare parts as defined by motor vehicle block exemption regulation KFZ-GVO (EU) 330/2010
- Consistently high product quality
- Reliable delivery service guaranteed by keeping adequate levels of stock
- Wide range of Standard Brake Discs with anti-corrosion protection Coat Z
- Ongoing development and expansion of range
- Over 50 years experience in brake disc manufacture
suitable for:
SUZUKI WAGON R+ Schrägheck (MM)
Typ: 1.3 DDiS (RB 413D)
build year: 01.09.2000 -
KW / HP: 51/70
ccm: 1248
fuel type: Diesel
body: Schrägheck
Position: front

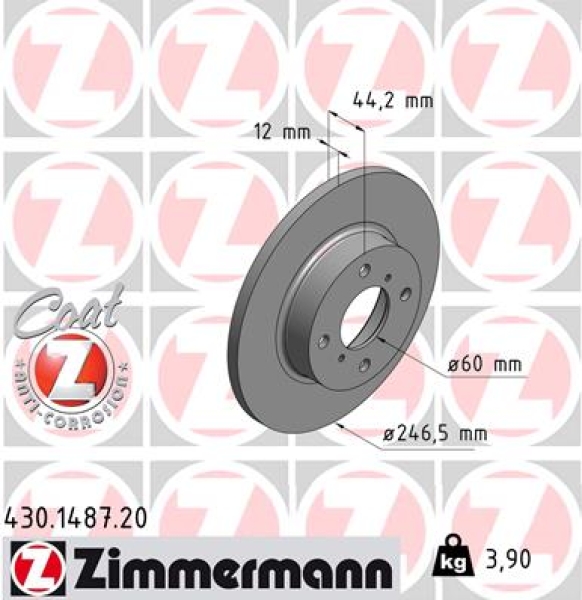

Brake Disc Specification:
brake discs art: Voll
thickness (mm): 12
height: 44,2
outer diameter (mm): 246,5
hole pitch / number: 6/4
bolt hole circle 1 Ø (mm): 100
min. thickness (mm): 10
hub bore Ø (mm): 60
Certification: eintragungsfrei
OE-Number (for comparison only): 4 700 711, 55311-83E00, 24.0112-0153.1, 186784, 0 986 478 729, 0 986 479 B45, 29615 01, 92110800, 92110803, 562124J, 562124JC, 562124B, 562124BC, 360406039400, J3308017, MDC1490, BDC5224, 9193872, DF29603, 18888, DF4131, 08.8705.10, DDF1148-1, DDF1148C-1, 430.1487.00, 430.1487.50, 430.1487.52, BS5224, 40 91 8888, 8120 10153, 14.0752, BG3769, 230935, 14809, BS 7608, BBD4300, 23-0603, 203642, 313642, BS-6350, 15671, 615 521 6023, 6621.00, DI-818, 78BD0711-2, V40-40025, T0620161, HP57960, NBD1117, 17204, 17204 OE, O1461P, DF659, BR-8713, BR-8713-C, AC2382D, D2382, 60-08-818, 142.540, HPD 540, BD-0711, 8DD 355 108-211, 6106080, 1263102600, 1263102609, 37-0754, 6041313, 6621 00, 5766, 1815203642, 1815313642, 207 985, 19-0711, 800-603, D6621.00, 628.1135, D1099, 01.17.42.116640, BDA1857.10, BDR1857.10, FBD1305, ADC0918, 562124S, S330I15, 0990-7108, 98447, 60818, 1032296, B130369, C38016ABE, CBR148, WGR1148-1, BD1775, PRD1326, 6041720, 5815203642
Price per piece - Brake discs are to be changed in pairs.
Zimmermann BS OPEL/SUZUKI Coat Z
