Zimmermann Brake Drum for OPEL CORSA B (S93) rear
Zimmermann Brake Drum OPEL CORSA B (S93) rear
Partnumber: 430.1781.00
Our goal is always to provide our customers with a high quality product.
Zimmermann - manufacturer of safety parts is aware of the responsibility and places the product quality first.
All brake drums of our standard wear parts program are produced in dimensions and material quality according to the specifications of the vehicle manufacturer.
suitable for:
OPEL CORSA B (S93)
Typ: 1.4 Si (F08, F68, M68)
build year: 01.03.1993 - 01.09.2000
KW / HP: 60/82
ccm: 1389
fuel type: Benzin
body: Schrägheck
Position: rear

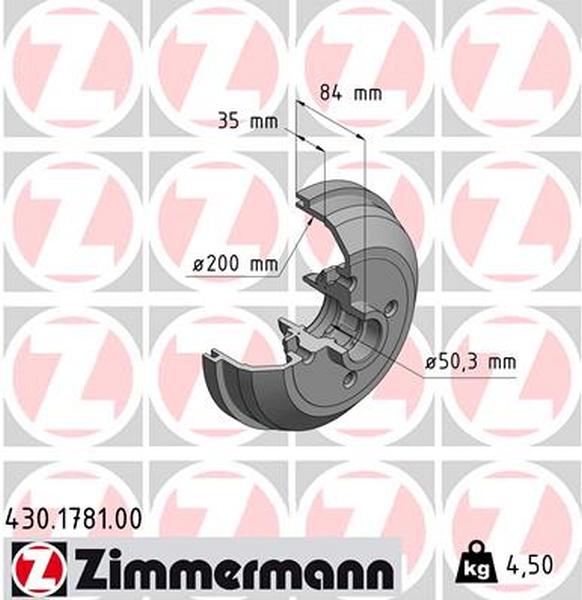

Brake Drum Specification:
brake system: incl. ABS-Sensorring
thickness (mm): 200
height: 84
outer diameter (mm): 228
hole pitch / number: 4/4
bolt hole circle 1 Ø (mm): 100
min. thickness (mm): 201
hub bore 1 Ø (mm): 39,8
hub bore 2 Ø (mm): 50,2
OE-Number (for comparison only): 418 025, 8DT 355 301-551, 24.0220-0033.2, 62931, 0 986 477 056, 94022300, MBD047, BDR490, 90509107, DB4134, DB4134B, 14.6796.10, 14.6796.50, 430.1781.20, BT230S, 8120 24206, 8120 24208, 15.0167, BF293, BT 1065, 18-0301, 253613, 253622, 35745, 7115.00, HP66495, 2407-S, 7D0139, BD-8051, 880418025ALT, 1825253613, 1825253622, 205 485, 700-301, 700-301K, B7115.00, BAD9019.40, FBR750, C6X005ABE, PRT016
Price per piece - Brake drums are to be changed in pairs.
