Zimmermann Coat Z Sport Brake Disc for BMW 1 (E81) front
Partnumber: 150.3423.52
The Zimmermann Sport Brake Disc was developed as a result of experience of brake discs in series-production vehicles in connection with racing.
The brake system is optimised by combining high-quality cast materials with a perforated braking surface.
Your advantages: - Better wet braking performance by permanent expulsion of brake dust and water
- Sporty look
- Because of the anti-corrosion protection Coat Z better finish - especially of the hub and the outer diameter
- Noticeable improvement in the braking power of your car
- Prevention of brake fade
- Countersinking of holes doubles up as wear indicator
- 1:1 exchange of original disc possible
- no additional adaptions necessary
Coat Z - - No formation of rust at the hub and herewith improved visual appearance
- Immediate functional capability without removal of the coating before mounting
- German production meeting the requirements of actual Quality Management Systems
- Well-known, highest Zimmermann-Product-Quality
suitable for:
BMW 1 (E81)
Typ: 116 d
build year: 01.11.2006 - 01.12.2011
KW / HP: 85/116
ccm: 1995
fuel type: Diesel
body: Schrägheck
Position: front

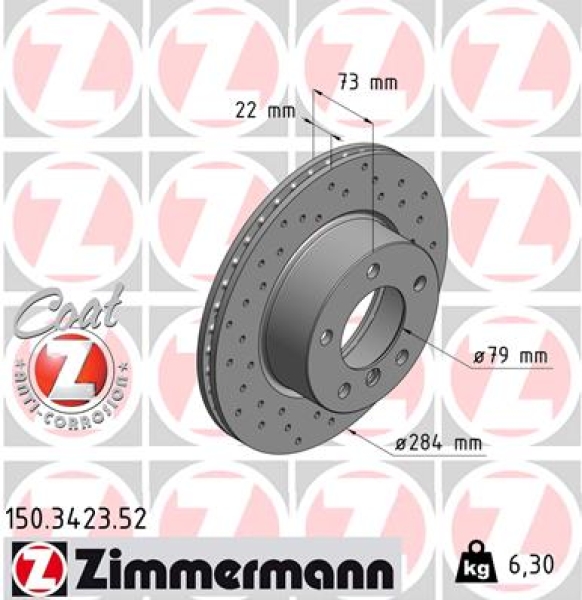

Brake Disc Specification:
brake discs art: Innenbelüftet, Gelocht
thickness (mm): 22
height: 73
outer diameter (mm): 284
hole pitch / number: 6/5
bolt hole circle 1 Ø (mm): 120
min. thickness (mm): 20,4
hub bore Ø (mm): 79
Certification: eintragungsfrei
OE-Number (for comparison only): 3411 6 764 629, 3411 6 854 996, 24.0122-0239.1, 24.0322-0239.1, 186816, 0 986 479 213, 30810 01, 92132700, 92132703, 562313JC, 360406004600, MDC1645, BDC5433, DF29810, 129810, 23535, DF4447, 09.9750.14, DDF1228, 150.3423.00, 150.3423.20, 150.3423.50, BS5433, BS5433HB, 20 92 3535, 8120 11164, 14.0792, BG3899, 231330, 24945 E, BS 8564, BBD4463, 23-0810, 201554, BS-7570, 25760, 315 521 3062, 315 521 3062/PD, 6651.10, 78BD4629-2, V20-80009, HP58280, 17600, 17600S, B2013V, DF1071, 08.34.071, 142.1071, HPD 1071, BD-4629, BD-4629-50, 8DD 355 111-221, 6106048, 1463102500, 6044471, V800, 1815201554, 19-4629, 800-810, D6651.10, 628.1839, 01.02.34.114432, BDA2328.20, BDR2328.20, BDRS2328.25, FBD1508, C3B049ABE
Price per piece - Brake discs are to be changed in pairs.
Zimmermann BS BMW SPORT Z
