Zimmermann Coat Z Sport Brake Disc for LAND ROVER RANGE ROVER II (P38A) front
Partnumber: 450.5220.52
The Zimmermann Sport Brake Disc was developed as a result of experience of brake discs in series-production vehicles in connection with racing.
The brake system is optimised by combining high-quality cast materials with a perforated braking surface.
Your advantages: - Better wet braking performance by permanent expulsion of brake dust and water
- Sporty look
- Because of the anti-corrosion protection Coat Z better finish - especially of the hub and the outer diameter
- Noticeable improvement in the braking power of your car
- Prevention of brake fade
- Countersinking of holes doubles up as wear indicator
- 1:1 exchange of original disc possible
- no additional adaptions necessary
Coat Z - - No formation of rust at the hub and herewith improved visual appearance
- Immediate functional capability without removal of the coating before mounting
- German production meeting the requirements of actual Quality Management Systems
- Well-known, highest Zimmermann-Product-Quality
suitable for:
LAND ROVER RANGE ROVER II (P38A)
Typ: 2.5 D 4x4
build year: 34516 - 37316
KW / HP: 100/136
ccm: 2497
fuel type: Diesel
body: Geländewagen geschlossen
Position: front

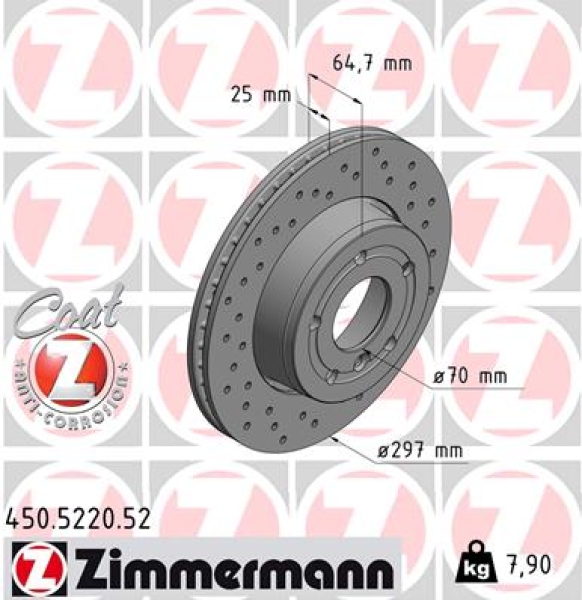

Brake Disc Specification:
brake discs art: außenbelüftet, Gelocht
thickness (mm): 25
height: 64,7
outer diameter (mm): 297
hole pitch / number: 6/5
bolt hole circle 1 Ø (mm): 120
min. thickness (mm): 22
hub bore Ø (mm): 70
OE-Number (for comparison only): 24.0125-0164.1, 0 986 478 483, 92093600, 562110J, 562110JC, MDC984, BDC4804, DF2766, 09.6839.10, 09.6839.11, DDF873-1, DDF873C, 450.5220.00, 450.5220.20, 450.5220.50, BS4804, 8120 17119, BG2860, 230315, BS 8221, BV 8221, NTC8780, BBD4084, 23-0543, 204015, 314015, BS-5030, 15681, 45-15 521 0005/PD, 6503.10, DI-L07, 78BD2817-2, V48-80003, NBD809, 16567, A4261V, DF462, 60-0L-L07, 142.330, HPD 330, DSK933, BD-2817, 8DD 355 106-271, 6027661, 24610, 24610 V, 6503 10, V432, BD0462, 1815204015, 1815314015, 19-0464, 800-543, D6503.10, 628.1441, 53.110.18650, 53.111.18650, ADJ134319, BDR1749.20, ADC1306V, AND6608, 98347, 304567, 305617, 60L07, C3I003ABE, CBR132, BD1713, PRD2355, 5815204015, 78RBD22817
Price per piece - Brake discs are to be changed in pairs.
Zimmermann BS LAND ROVER SPORT Z
