Zimmermann Sport Brake Disc for SUZUKI SWIFT IV (FZ, NZ) front
Zimmermann Coat Z Sport Brake Disc for SUZUKI SWIFT IV (FZ, NZ) front
Partnumber: 540.5300.52
The Zimmermann Sport Brake Disc was developed as a result of experience of brake discs in series-production vehicles in connection with racing.
The brake system is optimised by combining high-quality cast materials with a perforated braking surface.
Your advantages:
- Better wet braking performance by permanent expulsion of brake dust and water
- Sporty look
- Because of the anti-corrosion protection Coat Z better finish - especially of the hub and the outer diameter
- Noticeable improvement in the braking power of your car
- Prevention of brake fade
- Countersinking of holes doubles up as wear indicator
- 1:1 exchange of original disc possible
- no additional adaptions necessary
- No formation of rust at the hub and herewith improved visual appearance
- Immediate functional capability without removal of the coating before mounting
- German production meeting the requirements of actual Quality Management Systems
- Well-known, highest Zimmermann-Product-Quality
suitable for:
SUZUKI SWIFT IV (FZ, NZ)
Typ: 1.2 (AZH 412)
build year: 01.10.2010 -
KW / HP: 69/94
ccm: 1242
fuel type: Benzin
body: Schrägheck
Position: front

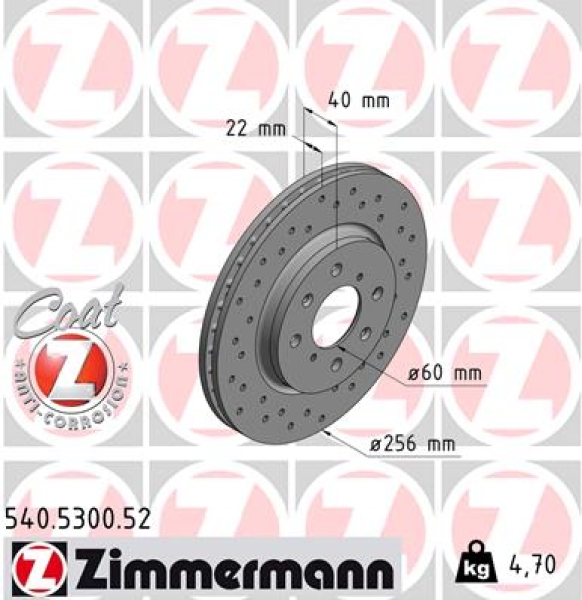

Brake Disc Specification:
brake discs art: Innenbelüftet, Gelocht
thickness (mm): 22
height: 40
outer diameter (mm): 256
hole pitch / number: 8/4
bolt hole circle 1 Ø (mm): 100
min. thickness (mm): 20
hub bore Ø (mm): 60
Certification: eintragungsfrei
OE-Number (for comparison only): 55311-68L00, 8DD 355 117-371, 55328PRO, 0 986 479 788, 92232803, 562694JC, 562694BC, J3308026, MDC2304, DF6232, 540.5300.00, 540.5300.20, 540.5300.50, 8120 69131, BG4340, 23-1264C, BBD5217, 23-1257C, 205224, 315224, BS-8720, 33-15 521 0013/PD, 61481.10, DI-826, NBD1802, 18186, S5006V, DF1462, BR-8732, AC3754D, 60-08-826, 142.1604, N3308023, 6062321, 61481 10, V564, 1815205224, 1815315224, 19-0624, 800-1257C, D61481.10, ADK84338, BDA2658.20, ADC0931V, K016-58, 60826, C38021ABE, CBR510
Price per piece - Brake discs are to be changed in pairs.
